Choose this product when
The required endpoint is a viable single-cell suspension rather than powder or lysate

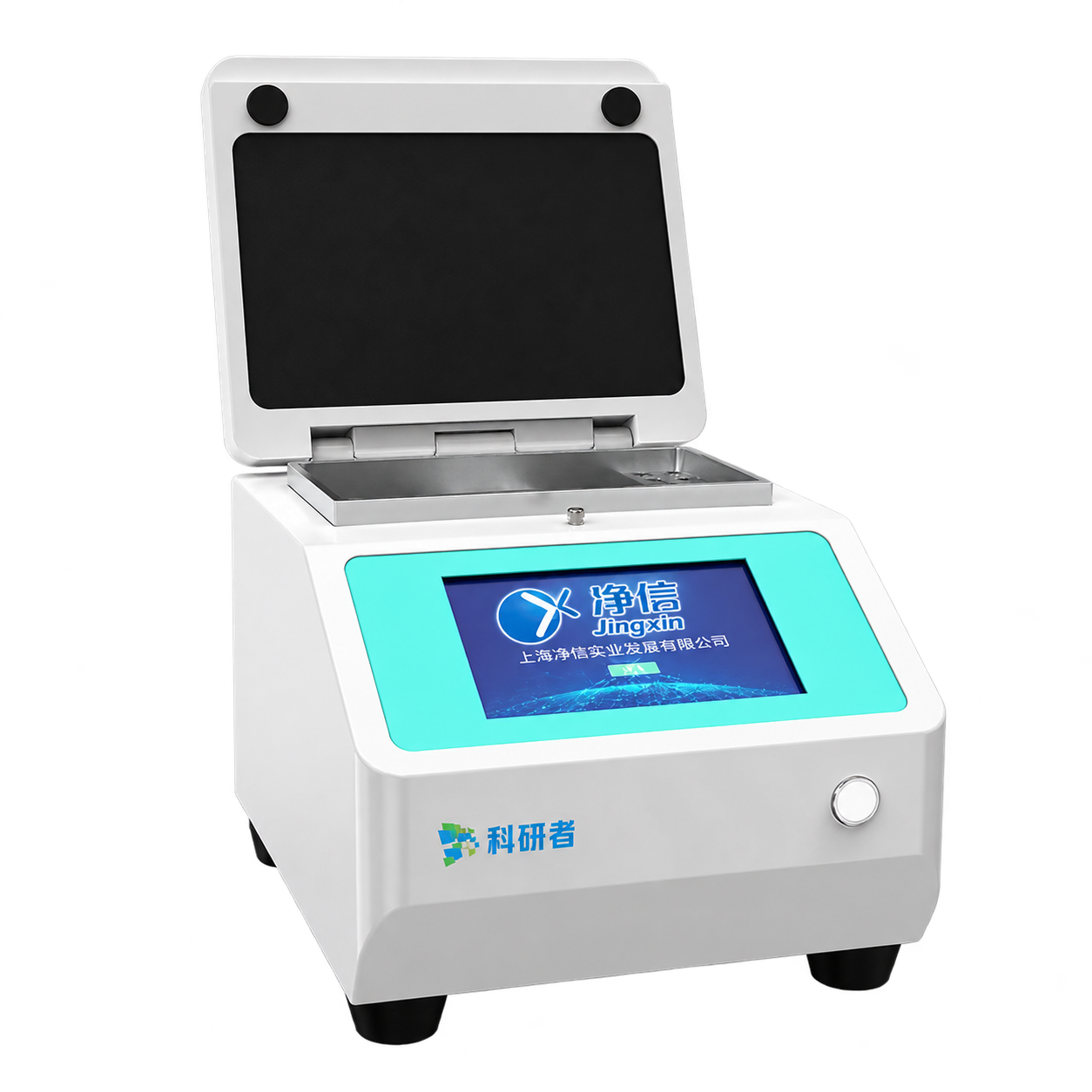

View larger image ↗Tissue Dissociator
JX-CKSM-4WK
A temperature-controlled single-cell suspension preparation system combining heated digestion with gentle mechanical tissue processing for small mammalian soft-tissue samples.
Best forSmall-batch temperature-controlled enzymatic and mechanical tissue dissociation
Temperature range22–56 °C
Sample mass5–1000 mg
Speed0–4000 rpm
Programs6 preset programs
Selection guide
Is this the right product?
Consider another route when
The endpoint is homogenate, lysate or powdered material
Select and validate the digestion reagent, temperature, time and mechanical program for the exact tissue.
Applications
Compatible samples
Human tumor and normal tissue
Mouse tumor and normal tissue
Mammalian soft tissue
Processing method
Working principle
Controlled heating and gentle mechanical processing support enzyme-assisted preparation of viable single-cell suspensions.
- Prepare the sample01
Match material and vessel
- Process the sample02
Use the selected operating setup
- Collect the output03
Prepare for downstream analysis
Technical specifications
Technical specifications
Check the selected model and container configuration before ordering.
Shanghai Jingxin
JX-CKSM-4WK
| Capacity & processing | |
|---|---|
| Sample mass | 5–1000 mg |
| Temperature & operation | |
| Temperature range | 22–56 °C adjustable |
| Speed | 0–4000 rpm |
| Working time | 20–300 min |
| Programs | 6 preset programs; upgrade |
| Safety / chamber | Electromagnetic lock and aluminum-alloy CNC chamber |
| Vessels & grinding tools | |
| Container capacity | 4 × 2 mL or 2 × 5 mL |
| Dimensions & electrical supply | |
| Noise level | <50 dB |
Vessels & accessories
Vessels & accessories
Confirm included items and optional accessories in the itemized quotation.
Container capacity
4 × 2 mL or 2 × 5 mL
Common questions
Product FAQ
Which samples can JX-CKSM-4WK process?
Human tumor and normal tissue Mouse tumor and normal tissue Mammalian soft tissue Match the preparation method to the material and downstream analysis.
What is the working capacity of JX-CKSM-4WK?
4 × 2 mL or 2 × 5 mL; 5–1000 mg sample mass. Capacity depends on the selected vessel, adapter and actual sample.
What temperature setup should I use?
22–56 °C adjustable. Match the cooling setup to the sample and operating method.
What affects the quotation?
The selected model, vessels, compatible accessories, optional temperature-control equipment and destination electrical requirements determine the quotation. Request a model-specific configuration and itemized supply list.
Plan your purchase
Procurement & support
Confirm the instrument, accessories and destination requirements in one enquiry.
Installation requirements
- Electrical supply
- Confirm voltage, frequency, power, plug and grounding for the selected model.
- Bench and access
- Check dimensions, equipment weight, lid clearance and maintenance access.
Documentation
Request documents for your model and destination market.
- Technical datasheet
- Operating manual
- Configuration list
Price & supply
Include sample type, amount, batch size, temperature requirements and delivery destination.
Request an itemized supply list with delivery, installation, training and warranty terms.
Request an itemized quote →Build your configuration
Match the equipment to your sample.
Discuss the model, operating setup and quotation with the application team.
