Choose this product when
Routine parallel preparation across different tube and vessel sizes

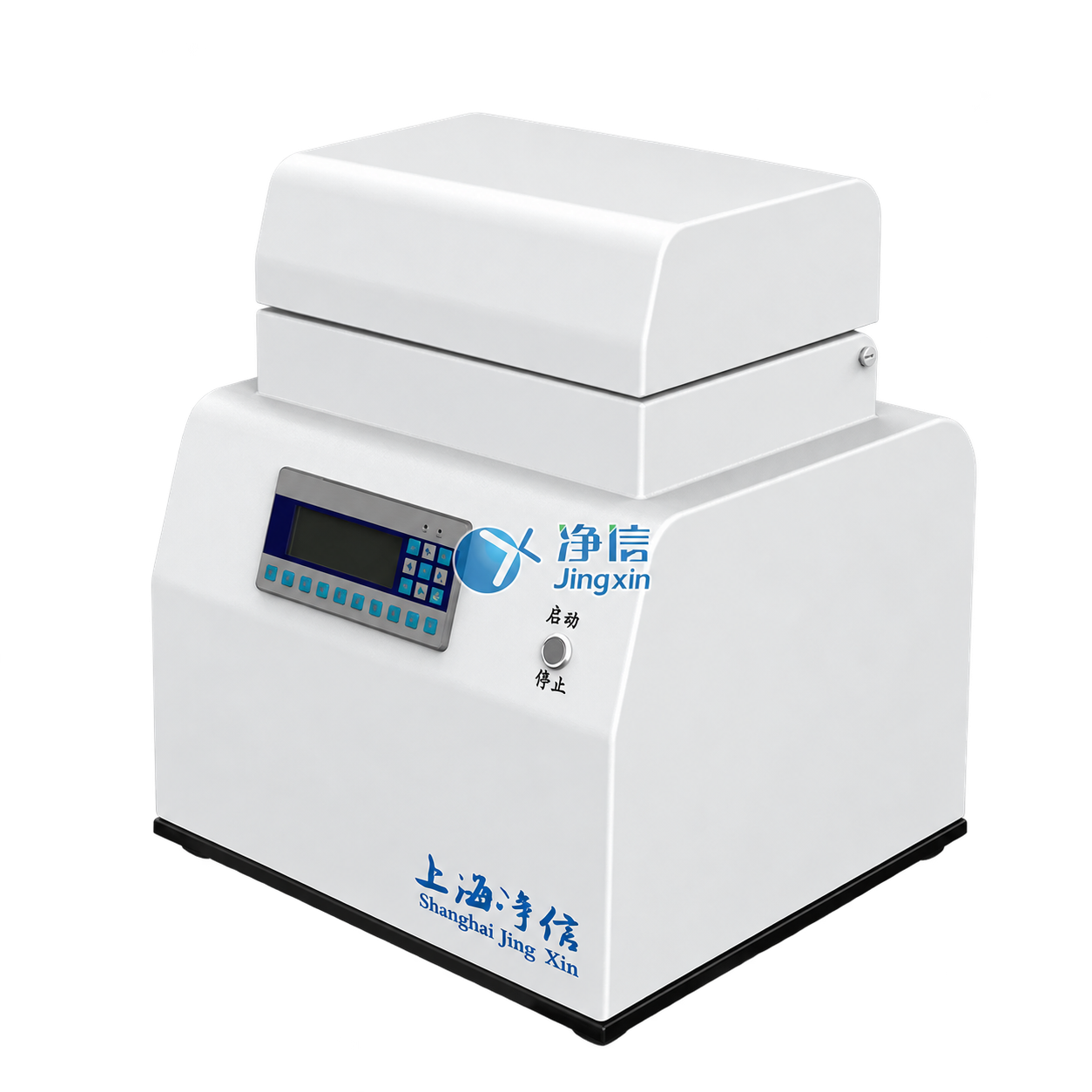

View larger image ↗Multi-Sample Tissue Grinder
Tissuelyser 24, 32, 48 & 64 Series
Compare four closed-vessel bead mill configurations for routine parallel sample preparation.
Best forRoutine parallel preparation across different tube and vessel sizes
VesselsMicrotubes and larger grinding jars
ProcessingWet, dry and pre-cooled workflows
Selection guide
Is this the right product?
Consider another route when
A dedicated actively refrigerated or higher-throughput system is required
Applications
Compatible samples
Plant tissue
Animal tissue
Microorganisms
Processing method
Working principle
Sealed vessels oscillate vertically so grinding media impact and shear the sample.
- Prepare the sample01
Match material and vessel
- Process the sample02
Use the selected operating setup
- Collect the output03
Prepare for downstream analysis
Model selection
Compare models
Each model retains its own specifications and accessory requirements.
| Model | 2 mL tube configuration | Larger vessels | Details |
|---|---|---|---|
| Tissuelyser-24 | 24 × 2 mL | 6 × 7–15 mL; 2 × 25 mL or 50 mL | Specifications → |
| Tissuelyser-32 | 32 × 2 mL | 12 × 5 mL; 8 × 7–15 mL; 2 × 25 mL or 50 mL | Specifications → |
| Tissuelyser-48 | 48 × 2 mL | 12 × 5 mL; 8 × 7–15 mL; 2 × 25 mL or 50 mL | Specifications → |
| Tissuelyser-64 | 64 × 2 mL | 12 × 5 mL; 8 × 7–15 mL; 2 × 25 mL or 50 mL | Specifications → |
Technical specifications
Specifications by model
Check the selected model and container configuration before ordering.
Shanghai Jingxin
Tissuelyser-24
| Vessels & grinding tools | |
|---|---|
| 2 mL tube configuration | 24 × 2 mL |
| Larger vessels | 6 × 7–15 mL; 2 × 25 mL or 50 mL |
Counts describe alternative vessel configurations, not simultaneous capacities.
Shanghai Jingxin
Tissuelyser-32
| Vessels & grinding tools | |
|---|---|
| 2 mL tube configuration | 32 × 2 mL |
| Larger vessels | 12 × 5 mL; 8 × 7–15 mL; 2 × 25 mL or 50 mL |
Counts describe alternative vessel configurations, not simultaneous capacities.
Shanghai Jingxin
Tissuelyser-48
| Vessels & grinding tools | |
|---|---|
| 2 mL tube configuration | 48 × 2 mL |
| Larger vessels | 12 × 5 mL; 8 × 7–15 mL; 2 × 25 mL or 50 mL |
Counts describe alternative vessel configurations, not simultaneous capacities.
Shanghai Jingxin
Tissuelyser-64
| Vessels & grinding tools | |
|---|---|
| 2 mL tube configuration | 64 × 2 mL |
| Larger vessels | 12 × 5 mL; 8 × 7–15 mL; 2 × 25 mL or 50 mL |
Confirm the adapter and batch configuration. For Tissuelyser-64, the 64-position compatibility and 48-sample processing figures differ; confirm the supplied configuration.
Vessels & accessories
Vessels & accessories
Confirm included items and optional accessories in the itemized quotation.
Configuration
Select model-compatible vessels, adapters and grinding media
Product comparison
Compare related products
| Product | Capacity / configuration | Temperature |
|---|---|---|
| Tissuelyser 24, 32, 48 & 64 SeriesCurrent product | 24 / 32 / 48 / 64 tube configurations | Pre-cooled workflows; active refrigeration requires an upgrade |
 | 2 model configurations | Pre-cooled / optional cooling |
 | 6 model configurations | Pre-cooled / optional cooling |
 | 24 samples in the stated primary configuration | Wet, dry and pre-cooled / low-temperature workflows |
Common questions
Product FAQ
Which samples can Tissuelyser 24, 32, 48 & 64 Series process?
Plant tissue Animal tissue Microorganisms Match the preparation method to the material and downstream analysis.
How do I choose the model and configuration?
Compare the model-specific specifications below. Include sample amount, vessel size, batch size and temperature requirement in your enquiry.
What temperature setup should I use?
Pre-cooled workflows; active refrigeration requires an upgrade. Match the cooling setup to the sample and operating method.
What affects the quotation?
The selected model, vessels, compatible accessories, optional temperature-control equipment and destination electrical requirements determine the quotation. Request a model-specific configuration and itemized supply list.
Plan your purchase
Procurement & support
Confirm the instrument, accessories and destination requirements in one enquiry.
Installation requirements
- Electrical supply
- Confirm voltage, frequency, power, plug and grounding for the selected model.
- Bench and access
- Check dimensions, equipment weight, lid clearance and maintenance access.
Documentation
Request documents for your model and destination market.
- Technical datasheet
- Operating manual
- Configuration list
Price & supply
Include sample type, amount, batch size, temperature requirements and delivery destination.
Request an itemized supply list with delivery, installation, training and warranty terms.
Request an itemized quote →Build your configuration
Match the equipment to your sample.
Discuss the model, operating setup and quotation with the application team.
