Choose this product when
You need compact closed-tube processing for no more than twelve samples per batch

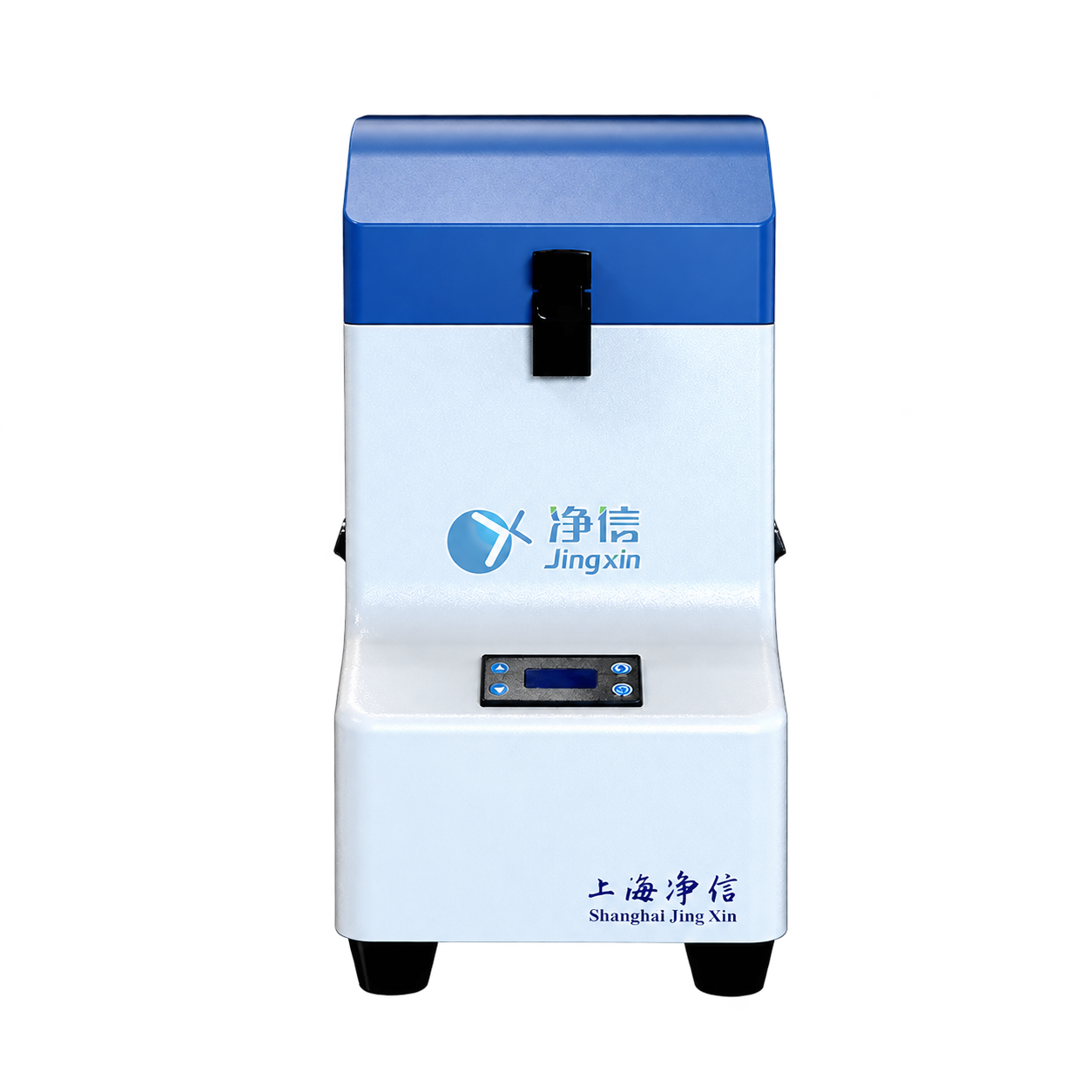

View larger image ↗Basic & Compact Tissue Disruptor
Tiss-Basic12
A compact tissue disruptor for one to twelve samples, using high-speed reciprocating motion for grinding, mixing and homogenization in closed vessels.
Best forSmall laboratories and low-volume workflows requiring a compact closed-tube system
Throughput1–12 samples
Maximum speed70 Hz
Processing time≤200 s
Weight20 kg
Selection guide
Is this the right product?
Consider another route when
You need more than twelve positions, active refrigeration or plate-based throughput
Confirm tube and clamp selection for the actual sample volume before ordering.
Applications
Compatible samples
Plant tissue
Animal tissue
Microorganisms
Medicinal materials and food
Hair
Processing method
Working principle
Sealed vessels oscillate with grinding media to disrupt or homogenize small batches.
- Prepare the sample01
Match material and vessel
- Process the sample02
Use the selected operating setup
- Collect the output03
Prepare for downstream analysis
Technical specifications
Technical specifications
Check the selected model and container configuration before ordering.
Shanghai Jingxin
Tiss-Basic12
| Capacity & processing | |
|---|---|
| Throughput | 1–12 samples |
| Temperature & operation | |
| Processing time | ≤200 s |
| Maximum operating speed | 70 Hz |
| Mixing speed | 2800–6000 rpm |
| Storage temperature | 0–40 °C |
| Safety | Built-in safety lock; operation stops when the cover is opened |
| Dimensions & electrical supply | |
| Maximum input power | 0.375 kW |
| Motor power | 60 W |
| Noise level | ≤55 dB |
| Power supply | AC 220 V ±20 V, 50/60 Hz |
| Weight | 20 kg |
| Other specifications | |
| Oscillation | Shaft-driven high-speed reciprocating motion |
| Grinding result | Micron-scale; confirm the required fineness for your sample |
| Display | OLED, at least 4 inches |
Common questions
Product FAQ
Which samples can Tiss-Basic12 process?
Plant tissue Animal tissue Microorganisms Medicinal materials and food Hair Match the preparation method to the material and downstream analysis.
What is the working capacity of Tiss-Basic12?
1–12 samples. Capacity depends on the selected vessel, adapter and actual sample.
What temperature setup should I use?
Storage range stated as 0–40 °C; no active grinding-chamber cooling specified. Match the cooling setup to the sample and operating method.
What affects the quotation?
The selected model, vessels, compatible accessories, optional temperature-control equipment and destination electrical requirements determine the quotation. Request a model-specific configuration and itemized supply list.
Plan your purchase
Procurement & support
Confirm the instrument, accessories and destination requirements in one enquiry.
Installation requirements
- Electrical supply
- Confirm voltage, frequency, power, plug and grounding for the selected model.
- Bench and access
- Check dimensions, equipment weight, lid clearance and maintenance access.
Documentation
Request documents for your model and destination market.
- Technical datasheet
- Operating manual
- Configuration list
Price & supply
Include sample type, amount, batch size, temperature requirements and delivery destination.
Request an itemized supply list with delivery, installation, training and warranty terms.
Request an itemized quote →Build your configuration
Match the equipment to your sample.
Discuss the model, operating setup and quotation with the application team.
