Choose this product when
A pumpable liquid requires high-pressure homogenization, emulsification or cell disruption

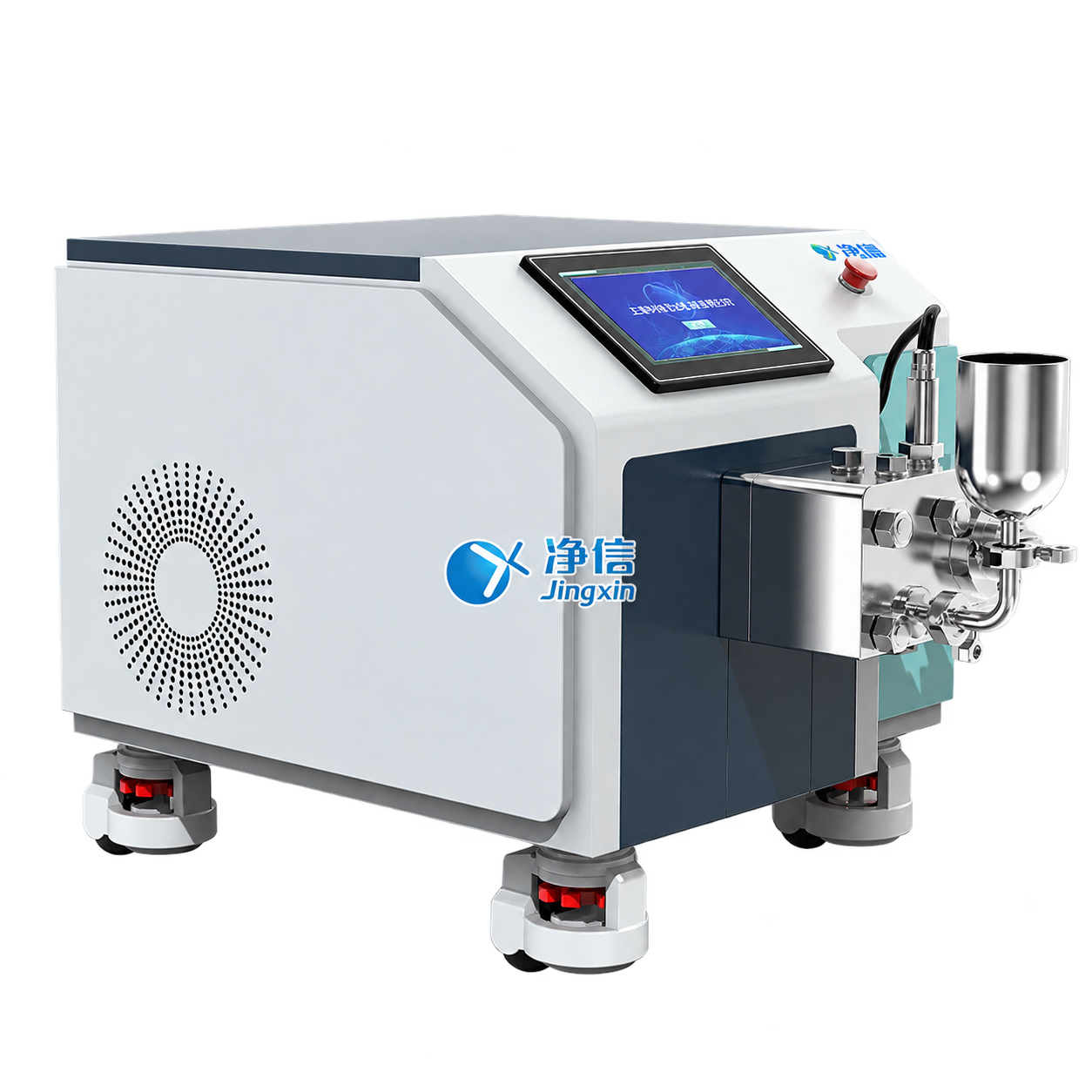

View larger image ↗High-Pressure Homogenizer
GSL-5
A laboratory high-pressure homogenizer with a 5–8 L/h design flow, up to 200 MPa design pressure and a minimum stated processing volume of 25 mL.
Best forLaboratory liquid processing that requires controlled high-pressure shear, impact and cavitation
Design pressure200 MPa
Operating pressure180 MPa
Design flow5–8 L/h
Minimum volume25 mL
Selection guide
Is this the right product?
Consider another route when
The material is a solid sample or the batch is too small to circulate through a high-pressure valve
Confirm viscosity, inlet particle size, pressure, pass count, cooling and valve selection.
Applications
Compatible samples
Pumpable biological suspensions
Pharmaceutical liquids
Food emulsions
Fine-chemical dispersions
Processing method
Working principle
Pumpable liquid passes through a high-pressure homogenizing valve, producing shear, impact and cavitation.
- Prepare the sample01
Match material and vessel
- Process the sample02
Use the selected operating setup
- Collect the output03
Prepare for downstream analysis
Technical specifications
Technical specifications
Check the selected model and container configuration before ordering.
Shanghai Jingxin
GSL-5
| Capacity & processing | |
|---|---|
| Design flow | 5–8 L/h |
| Minimum processing volume | 25 mL |
| Maximum inlet particle size | 100 μm |
| Temperature & operation | |
| Maximum design pressure | 200 MPa / 2000 bar / 29000 psi |
| Operating pressure | 180 MPa / 1800 bar / 26100 psi |
| Maximum feed temperature | ≤90 °C |
| Pressure display | Pressure sensor with 7-inch touchscreen / digital display |
| Dimensions & electrical supply | |
| Power | 1.5 kW |
| Power supply | 220 V |
| Weight | 140 kg |
| Other specifications | |
| Maximum process viscosity | ≤2000 cP |
| Operation | Touchscreen / buttons; manual control |
| Plungers | 1 |
Product comparison
Compare related products
| Product | Capacity / configuration | Temperature |
|---|---|---|
| GSL-5Current product | 5–8 L/h design flow; minimum stated volume 25 mL | Maximum feed temperature ≤90 °C; optional temperature-control equipment |
 | 8 model configurations | Configure fluid cooling |
 | 3 model configurations | Optional fluid cooling |
Common questions
Product FAQ
Which samples can GSL-5 process?
Pumpable biological suspensions Pharmaceutical liquids Food emulsions Fine-chemical dispersions Match the preparation method to the material and downstream analysis.
What is the working capacity of GSL-5?
5–8 L/h design flow; minimum stated volume 25 mL. Capacity depends on the selected vessel, adapter and actual sample.
What temperature setup should I use?
Maximum feed temperature ≤90 °C; optional temperature-control equipment . Match the cooling setup to the sample and operating method.
What affects the quotation?
The selected model, vessels, compatible accessories, optional temperature-control equipment and destination electrical requirements determine the quotation. Request a model-specific configuration and itemized supply list.
Plan your purchase
Procurement & support
Confirm the instrument, accessories and destination requirements in one enquiry.
Installation requirements
- Electrical supply
- Confirm voltage, frequency, power, plug and grounding for the selected model.
- Bench and access
- Check dimensions, equipment weight, lid clearance and maintenance access.
Documentation
Request documents for your model and destination market.
- Technical datasheet
- Operating manual
- Configuration list
Price & supply
Include sample type, amount, batch size, temperature requirements and delivery destination.
Request an itemized supply list with delivery, installation, training and warranty terms.
Request an itemized quote →Build your configuration
Match the equipment to your sample.
Discuss the model, operating setup and quotation with the application team.
