Choose this product when
You need active refrigeration with high throughput and several large-vessel options

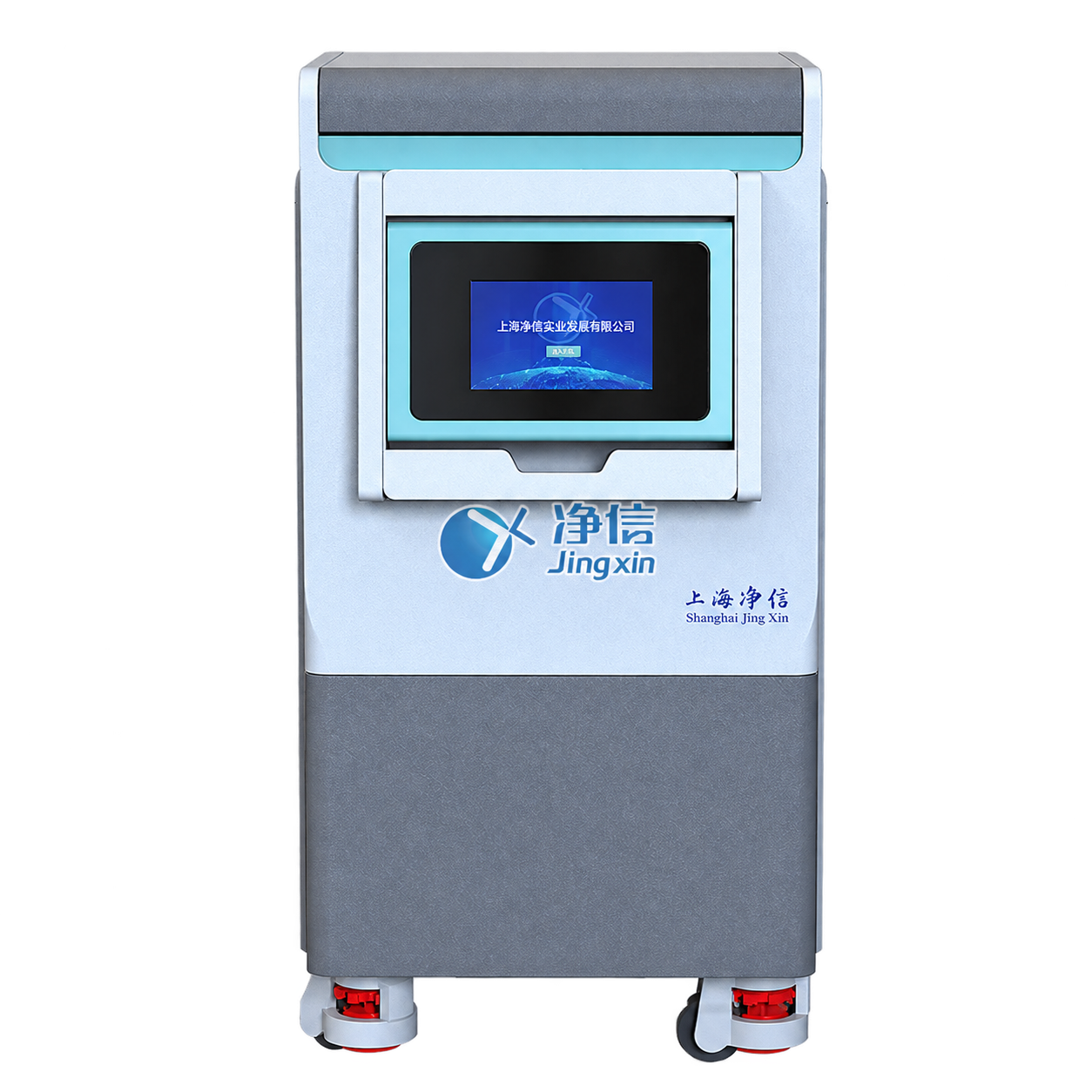

View larger image ↗Cryogenic Grinder
JXFSTPRP-192CL
A high-speed refrigerated grinding homogenizer with vertical oscillation, compressor cooling and container options from microtubes and deep-well plates to 100 mL vessels.
Best forRefrigerated high-throughput workflows requiring a broad vessel range
Maximum format192 × 2 mL deep-well tubes
Temperature range−50 °C to room temperature
Frequency0–70 Hz
Noise level<45 dB
Selection guide
Is this the right product?
Consider another route when
Your batch is small or your material needs a dedicated liquid-nitrogen or non-bead grinding mechanism
Confirm the actual number of samples, vessel capacity and adapter before treating the maximum format as the working configuration.
Applications
Compatible samples
Plant tissue
Animal tissue including bone
Fungi and bacteria
Food and pharmaceutical samples
Volatile samples
Plastics, polymers and textiles
Processing method
Working principle
Grinding media process samples inside a refrigerated chamber while the instrument controls the stated temperature range.
- Prepare the sample01
Match material and vessel
- Process the sample02
Use the selected operating setup
- Collect the output03
Prepare for downstream analysis
Technical specifications
Technical specifications
Check the selected model and container configuration before ordering.
Shanghai Jingxin
JXFSTPRP-192CL
| Capacity & processing | |
|---|---|
| Feed / final size | Feed size depends on adapter; final particle size approx. 5 μm |
| Temperature & operation | |
| Temperature range | −50 °C to room temperature |
| Frequency | 0–70 Hz |
| Grinding modes | Wet, dry and low-temperature grinding |
| Run programming | Three-stage operation; 1–20 cycles |
| Cycle interval | 1–600 s |
| Run time | 0–9999 s |
| Acceleration / deceleration | 2 s to maximum / minimum speed |
| Safety | Dual electronic locks and lid-open stop function |
| Vessels & grinding tools | |
| Compatible formats | 192 × 2 mL deep-well tubes; 96 × 2 mL standard tubes; 48 × 5 mL; 32 × 7–15 mL; 16 × 50 mL; 8 × 100 mL; 2 × 25 mL steel jars; 2 × 50 mL steel jars |
| Grinding ball diameter | 0.1–30 mm |
| Grinding ball materials | Stainless steel, chrome steel, zirconia, tungsten carbide and quartz sand |
| Dimensions & electrical supply | |
| Noise level | <45 dB |
Vessels & accessories
Vessels & accessories
Confirm included items and optional accessories in the itemized quotation.
Compatible formats
- 192 × 2 mL deep-well tubes
- 96 × 2 mL standard tubes
- 48 × 5 mL
- 32 × 7–15 mL
- 16 × 50 mL
- 8 × 100 mL
- 2 × 25 mL steel jars
- 2 × 50 mL steel jars
Grinding ball diameter
0.1–30 mm
Grinding ball materials
Stainless steel, chrome steel, zirconia, tungsten carbide and quartz sand
Application examples
Application cases
Compare the sample, container, conditions and result with your own workflow.
Pig liver tissue
Refrigerated preparation of pig-liver tissue
The experiment identifies JXFSTPRP-192CL and combines low-temperature control with high-speed oscillation. The processed liver was reported as a fine homogenate without visible clumps for subsequent analysis.
Read this case →Plastic sample
Low-temperature grinding of a difficult plastic sample
The experiment identifies JXFSTPRP-192CL and uses liquid-nitrogen pre-treatment followed by mechanical grinding to reduce clumping in a tough, heat-sensitive material.
Read this case →Vegetable sample with acetonitrile
Vegetable preparation for pesticide-residue extraction
The experiment used JXFSTPRP-192CL to process vegetable material, grinding media and acetonitrile in sealed tubes before mass-spectrometry analysis. The reported run time was two minutes for the tested setup.
Read this case →Product comparison
Compare related products
| Product | Capacity / configuration | Temperature |
|---|---|---|
| JXFSTPRP-192CLCurrent product | Up to 192 × 2 mL deep-well tubes, format dependent | Adjustable from −50 °C to room temperature |
 | 5 model configurations | −50 °C to room temperature |
 | −30 °C to room temperature | −30 °C to room temperature |
 | Up to 192 samples, adapter dependent | Adjustable from −50 °C to room temperature |
Common questions
Product FAQ
Which samples can JXFSTPRP-192CL process?
Plant tissue Animal tissue including bone Fungi and bacteria Food and pharmaceutical samples Volatile samples Plastics, polymers and textiles Match the preparation method to the material and downstream analysis.
What is the working capacity of JXFSTPRP-192CL?
Up to 192 × 2 mL deep-well tubes, format dependent. Capacity depends on the selected vessel, adapter and actual sample.
What temperature setup should I use?
Adjustable from −50 °C to room temperature. Match the cooling setup to the sample and operating method.
What affects the quotation?
The selected model, vessels, compatible accessories, optional temperature-control equipment and destination electrical requirements determine the quotation. Request a model-specific configuration and itemized supply list.
Plan your purchase
Procurement & support
Confirm the instrument, accessories and destination requirements in one enquiry.
Installation requirements
- Electrical supply
- Confirm voltage, frequency, power, plug and grounding for the selected model.
- Bench and access
- Check dimensions, equipment weight, lid clearance and maintenance access.
- Cooling and handling
- Plan ventilation, protective equipment and coolant handling for the selected cooling method.
Documentation
Request documents for your model and destination market.
- Technical datasheet
- Operating manual
- Configuration list
Price & supply
Include sample type, amount, batch size, temperature requirements and delivery destination.
Request an itemized supply list with delivery, installation, training and warranty terms.
Request an itemized quote →Build your configuration
Match the equipment to your sample.
Discuss the model, operating setup and quotation with the application team.
