Choose this product when
You need parallel dry, wet or pre-cooled grinding across several container formats

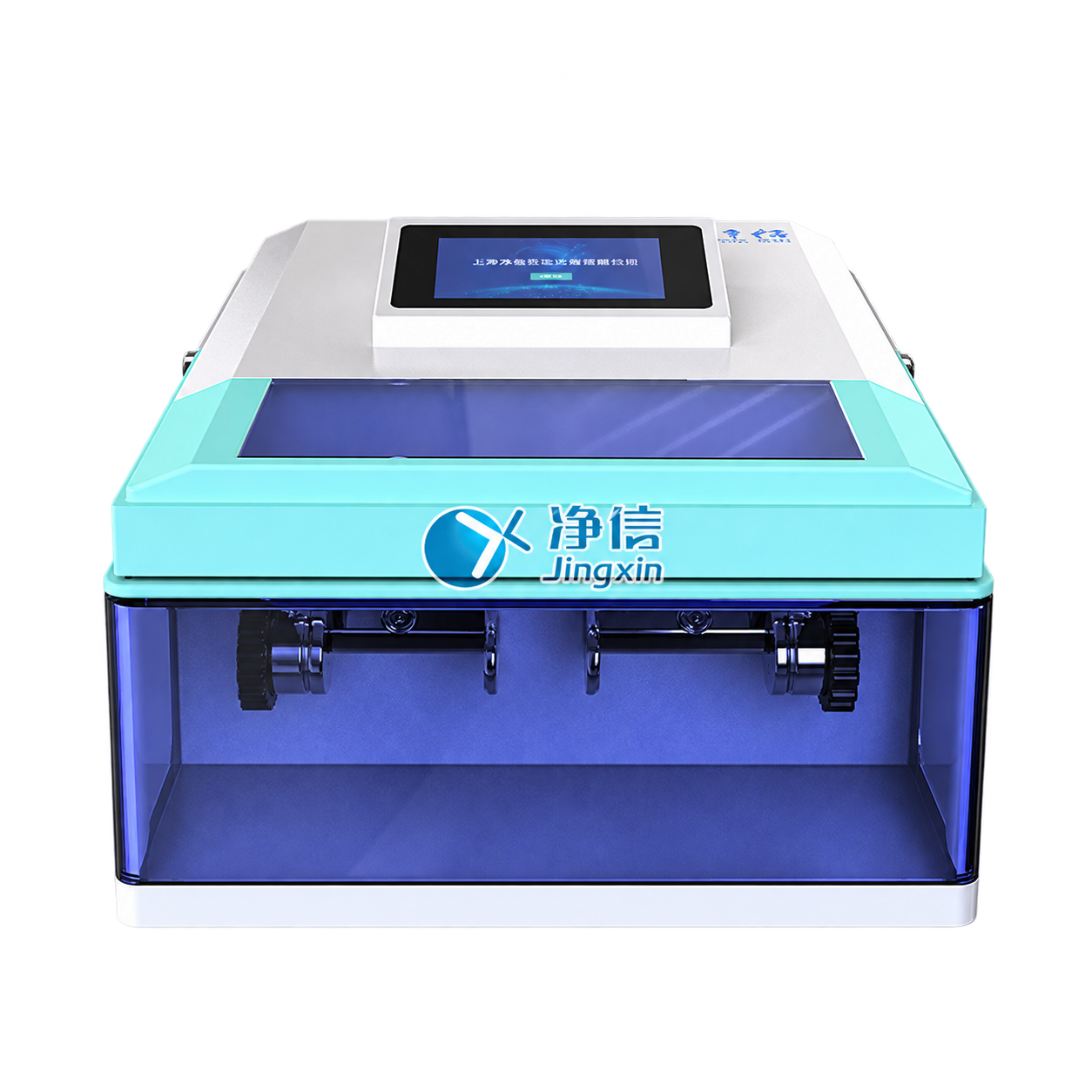

View larger image ↗High-Throughput Tissue Grinder
Tissuelyser-II
A two-platform high-throughput tissue grinder for dry, wet and low-temperature grinding of hard, soft and elastic samples, with configurations for tubes, grinding jars and two 96-well plates.
Best forParallel sample preparation across tubes, jars or two 96-well plates
Sample capacity1–192 samples
Frequency0–70 Hz
Typical grinding time2 min
Final particle sizeApprox. 5 μm, material dependent
Selection guide
Is this the right product?
Consider another route when
You need continuous liquid processing, gentle single-cell dissociation or a dedicated actively refrigerated system
Confirm the sample amount, vessel or plate format, grinding media and required temperature method before quotation.
Applications
Compatible samples
Plant tissue
Animal tissue
Cells and bacteria
Spores and yeast
Hard, soft and elastic materials
Processing method
Working principle
Parallel tube, plate or jar formats use oscillating grinding media for batch sample preparation.
- Prepare the sample01
Match material and vessel
- Process the sample02
Use the selected operating setup
- Collect the output03
Prepare for downstream analysis
Technical specifications
Technical specifications
Check the selected model and container configuration before ordering.
Shanghai Jingxin
Tissuelyser-II
| Capacity & processing | |
|---|---|
| Maximum feed size | ≤ 8 mm |
| Final particle size | Approx. 5 μm; fineness varies by material |
| Sample capacity | 1–192 samples |
| Capacity configurations | Two 96-well plates; 2 mL × 28 × 2; 50 mL grinding jars × 2. Confirm the 25 mL jar quantity in the selected configuration. |
| Temperature & operation | |
| Frequency range | 0–70 Hz |
| Typical grinding time | 2 min |
| Grinding modes | Dry, wet and low-temperature grinding |
| Timer display | 0–9999 s |
| Motor speed | 2800 rpm |
| Vessels & grinding tools | |
| Grinding jar type | Screw-cap grinding jars |
| Jar materials | Titanium alloy, stainless steel, PTFE and polyethylene; other materials may be customized |
| Tube / jar sizes | 15 mL / 25 mL / 50 mL |
| Dimensions & electrical supply | |
| Accepted power | 150 W |
| Motor power | 90 W |
| Dimensions (L × W × H) | 490 × 380 × 270 mm |
| Net weight | 26.7 kg |
| Other specifications | |
| Grinding platforms | 2 |
| Clamping | Automatic center-positioning clamp |
| Drive | Variable-frequency motor |
Vessels & accessories
Vessels & accessories
Confirm included items and optional accessories in the itemized quotation.
Capacity configurations
- Two 96-well plates
- 2 mL × 28 × 2
- 50 mL grinding jars × 2. Confirm the 25 mL jar quantity in the selected configuration.
Grinding jar type
Screw-cap grinding jars
Jar materials
- Titanium alloy, stainless steel, PTFE and polyethylene
- other materials may be customized
Tube / jar sizes
15 mL / 25 mL / 50 mL
Product comparison
Compare related products
| Product | Capacity / configuration | Temperature |
|---|---|---|
| Tissuelyser-IICurrent product | 1–192 samples, configuration dependent | Dry, wet or low-temperature grinding |
 | 3 model configurations | Pre-cooled / optional cooling |
 | 2 model configurations | Pre-cooled / optional cooling |

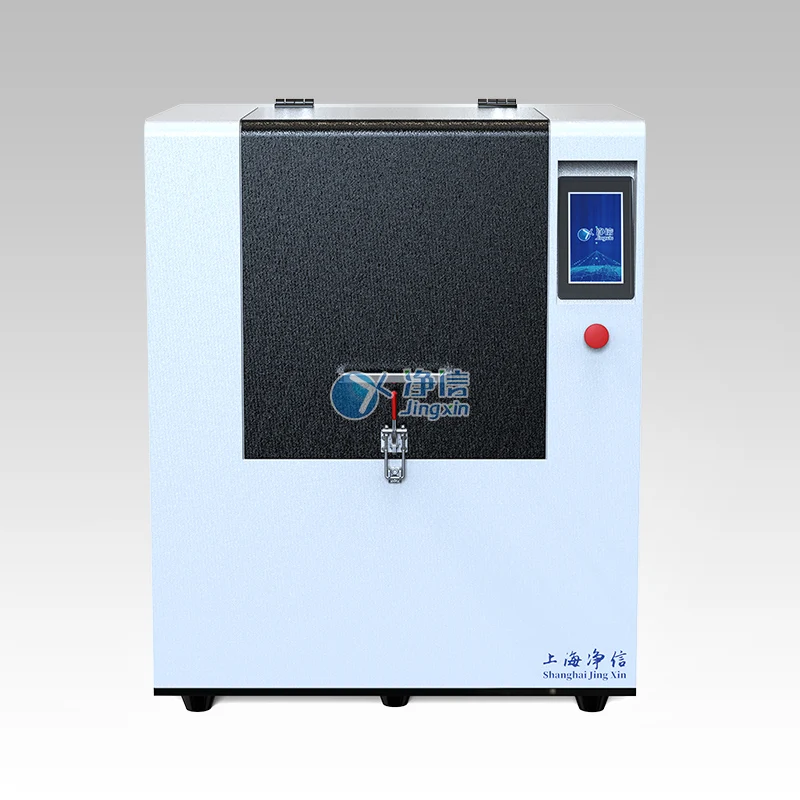

 | Up to 576 samples | Wet, dry and low-temperature workflows; cooling as an upgrade |
Common questions
Product FAQ
Which samples can Tissuelyser-II process?
Plant tissue Animal tissue Cells and bacteria Spores and yeast Hard, soft and elastic materials Match the preparation method to the material and downstream analysis.
What is the working capacity of Tissuelyser-II?
1–192 samples, configuration dependent. Capacity depends on the selected vessel, adapter and actual sample.
What temperature setup should I use?
Dry, wet or low-temperature grinding. Match the cooling setup to the sample and operating method.
What affects the quotation?
The selected model, vessels, compatible accessories, optional temperature-control equipment and destination electrical requirements determine the quotation. Request a model-specific configuration and itemized supply list.
Plan your purchase
Procurement & support
Confirm the instrument, accessories and destination requirements in one enquiry.
Installation requirements
- Electrical supply
- Confirm voltage, frequency, power, plug and grounding for the selected model.
- Bench and access
- Check dimensions, equipment weight, lid clearance and maintenance access.
- Cooling and handling
- Plan ventilation, protective equipment and coolant handling for the selected cooling method.
Documentation
Request documents for your model and destination market.
- Technical datasheet
- Operating manual
- Configuration list
Price & supply
Include sample type, amount, batch size, temperature requirements and delivery destination.
Request an itemized supply list with delivery, installation, training and warranty terms.
Request an itemized quote →Build your configuration
Match the equipment to your sample.
Discuss the model, operating setup and quotation with the application team.
